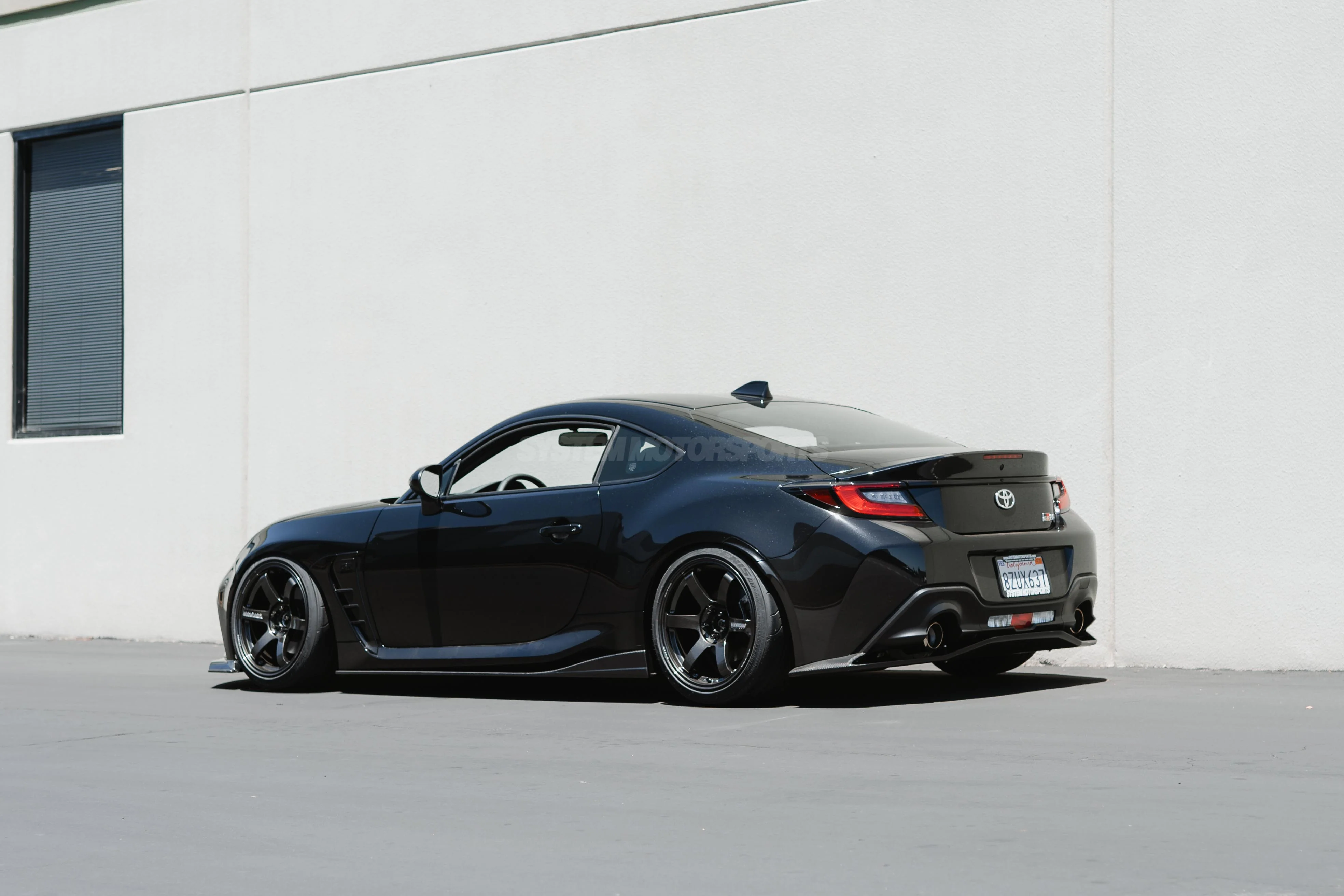

2022+ Toyota GR86 (ZN8) GReddy x Voltex Aero Kit

USE THE PULL-DOWN MENU ABOVE TO SELECT FULL KIT OR INDIVIDUAL PART OPTIONS, THEN ADD TO CART

Product features

◆ High-performance, high-quality aero kit for street and light circuits collaboration "GReddy x VOLTEX".
◆ Assuming an appropriate downforce, the design is simple yet aggressive and timeless.
◆ Wing angle can be adjusted. There are 3 stages for both side mount and center mount.
◆ All items have been painted. Wet carbon is [clear paint], and FRP is [matte black paint].
◆ Safety standard compliant product
◆ Normal body ratio down amount (approx.)
[Front: tip 35 mm, rear end 18 mm] [Side: 15 mm] [Rear: tip 35 mm, rear end 60 mm]

Specification

◆ Wet carbon (twill weave) and FRP are available for front, side and rear.
The rear wing is made of wet carbon (twill weave) and pedestal: FRP, and there are two types, side mount and center mount (matte black painted).

◆ Wet carbon is clear-painted, and FRP is matte black-painted.

◆ Drilling is required for installation.


Related Part Numbers: (sold separately)
  17510231   GReddy × VOLTEX Aero Kit Front Under Spoiler [86FW] WC
     ^{(or 17510232 - FRP)}
  17510233   GReddy × VOLTEX Aero Kit Side Under Panel [86SW] WC
     ^{(or 17510234 - FRP)}
  17510235   GReddy × VOLTEX Aero Kit Rear Under Spoiler [86RW] WC
     ^{(or 17510236 - FRP)}
  17510237   GReddy × VOLTEX Aero Kit Rear Wing w/ Side Uprights [86WS] WC
         or
  17510238   GReddy × VOLTEX Aero Kit Rear Wing w/ Center Mount [86WM] WC              or
  17510239   GReddy × VOLTEX Aero Kit Rear Wing w/ Swan Neck [86WM] WC
   WC: Abbreviation for wet carbon   /   FRP - fiberglass (matte black)

 [Standard estimated installation time] Front 1.5H, Side 2.0H, Rear 1.5H, Wing (Side M) 1.0H, Wing (Center M) 2.5H
